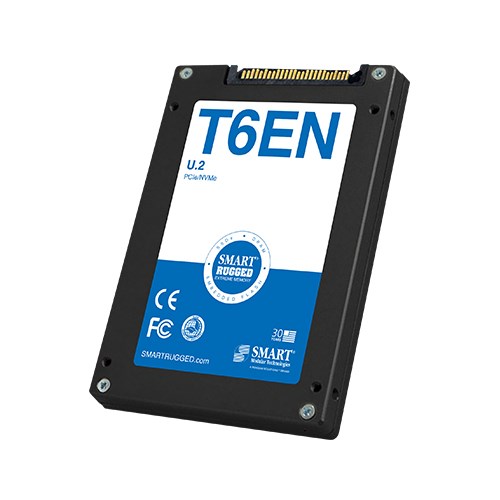

T6EN U.2 PCIe NVMe SSD

T Series

SMART’s T6EN U.2 PCIe/NVMe Gen4x4 RUGGED™ SSDs deliver high performance, high capacity storage solutions optimized for defense, aerospace and other applications requiring durable, rugged and secure storage.

Powered by a flexible, custom flash controller, T6EN SSDs provide sustained read/write performance to meet the needs of high throughput applications such as flight data recorders and sensor data capture. T6EN SSDs are also well suited for high-reliability telemetry, surveillance, and mission critical applications.

T6EN U.2 SSDs provide capacities up to 15360GB. They are more reliable, offer superior performance, and require less power and cooling than traditional hard disk drives (HDDs).

Essentials
T6EN
3D TLC
PCIe Gen4 x4
Performance
Up to 3500MB/s
Up to 3000MB/s
Up to 390K IOPS
Up to 55K IOPS
960GB
1920GB
3840GB
7680GB
15360GB
Reliability
Up to 9,600 TBW (I-Temp, 15,360GB)
> 2,000,000 hours
Environmental
50G (11 ms duration, half sine wave)
10G (peak, 10-2000Hz)
I-temp: -40℃ to +85℃
-55℃ to +90℃
5% to 95% non-condensing
Physical
100.5mm
69.85mm
7mm
HRCN7P15360ME00115360GBI Temp (-40˚C to +85˚C)
HRCN7P7680ME0017680GBI Temp (-40˚C to +85˚C)
HRCN7P3840HI0013840GBI Temp (-40˚C to +85˚C)
HRCN7P1920HI0011920GBI Temp (-40˚C to +85˚C)
HRCN7P0960HI001960GBI Temp (-40˚C to +85˚C)
