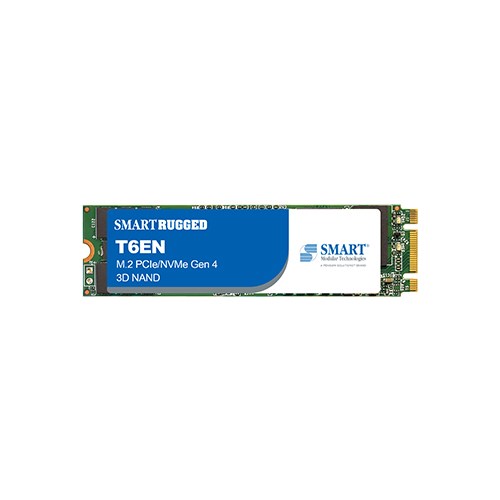

T6EN M.2 2280 PCIe NVMe SSD

T Series

SMART’s T6EN M.2 2280 PCIe/NVMe Gen4x4 RUGGED™ SSDs deliver high performance, high capacity storage solutions optimized for defense, aerospace and other applications requiring durable, rugged and secure storage.

Powered by a flexible, custom flash controller, T6EN SSDs provide sustained read/write performance to meet the needs of high throughput applications such as flight data recorders and sensor data capture. T6EN SSDs are also well suited for high-reliability telemetry, surveillance, and mission critical applications.

T6EN M.2 2280 SSDs provide capacities up to 7680GB. They are more reliable, offer superior performance, and require less power and cooling than traditional hard disk drives (HDDs).

Essentials
T6EN
3D TLC
PCIe Gen4 x4
Performance
Up to 3200MB/s
Up to 3200MB/s
Up to 390K IOPS
Up to 50K IOPS
960GB
1920GB
3840GB
7680GB
Reliability
Up to 9,600 TBW (I-Temp, 15,360GB)
> 2,000,000 hours
Environmental
50G (11 ms duration, half sine wave)
10G (peak, 10-2000Hz)
I-temp: -40℃ to +85℃
-55℃ to +90℃
5% to 95% non-condensing
Physical
80mm
24mm
11.6mm
HRCN3P7680MI0017680GBI Temp (-40˚C to +85˚C)
HRCN3P3840MI0013840GBI Temp (-40˚C to +85˚C)
HRCN3P1920HI0011920GBI Temp (-40˚C to +85˚C)
HRCN3P0960HI001960GBI Temp (-40˚C to +85˚C)
