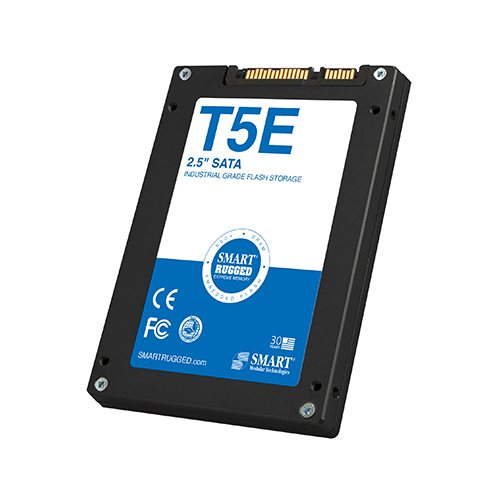

T5E TLC 2.5" SATA SSD

T Series

SMART's RUGGED SSD T5E products are the ideal solution for ground and air defense, industrial automation, transportation, medical and telecommunication applications, T5E 2.5" SATA solid state drive (SSD) combines high performance, superior reliability and data security into a single ruggedized design.

The SMART T5E SSD is designed to meet the needs of applications where temperature tolerances are as important as high performance and reliability. A robust set of diagnostic information is provided through SSD-specific S.M.A.R.T attributes which can be used to monitor the health of the drives.

T5E pSLC 2.5" SATA SSD

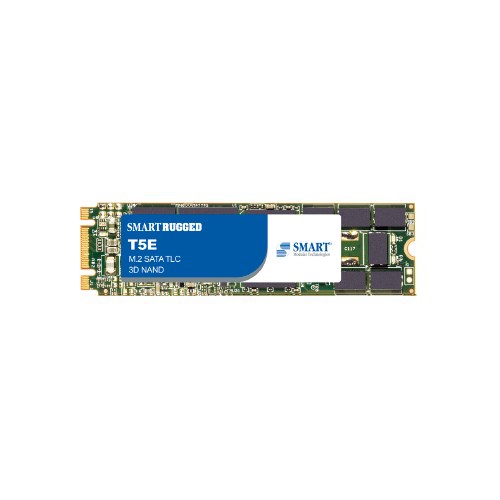

T5E M.2 2280 SATA SSD

SafeDATA™

Advanced Error Detection & Correction

AES-256 Encryption

TCG Opal 2.0

Write Protection

Secure Erase

Industrial Temperature (-40°C to +85°C)

Conformal Coating

Networking & Telecom

Industrial & Factory Automation

Military & Aerospace

Essentials: Product SeriesT5E; NAND Flash Technology3D TLC; InterfaceSATA 3.0 6Gb/s

Performance: Sequential Read (maximum)Up to 550MB/s; Sequential Write (maximum)Up to 535MB/s; 4K Random Read (maximum)Up to 80K IOPS; 4K Random Write (maximum)Up to 50K IOPS; Capacities120GB
240GB
480GB
960GB
1920GB
3840GB

Reliability: TDWUp to 1,000 TDW; MTBF> 2,000,000 hours

Environmental: Shock50g half-sine, 11 ms, 3 shocks along each axis, X, Y, Z in each direction; Vibration16.4 g rms 10-2000 Hz random, 3-axes; Operating TemperatureC-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃; Storage Temperature-55℃ to +95℃; Humidity 5% to 95% non-condensing

Physical: Length 100mm; Width 69.85mm; Height7mm


HRCA2X3840HI001	3840GB	I Temp (-40˚C to +85˚C)
HRCA2X3840HC001	3840GB	C Temp (0˚C to +70˚C)
HRCA2X1920HI001	1920GB	I Temp (-40˚C to +85˚C)
HRCA2X1920HC001	1920GB	C Temp (0˚C to +70˚C)
HRCA2X0960HI001	960GB	I Temp (-40˚C to +85˚C)
HRCA2X0960HC001	960GB	C Temp (0˚C to +70˚C)
HRCA2X0480HI001	480GB	I Temp (-40˚C to +85˚C)
HRCA2X0480HC001	480GB	C Temp (0˚C to +70˚C)
HRCA2X0240HI001	240GB	I Temp (-40˚C to +85˚C)
HRCA2X0240HC001	240GB	C Temp (0˚C to +70˚C)
HRCA2X0120HI001	120GB	I Temp (-40˚C to +85˚C)
HRCA2X0120HC001	120GB	C Temp (0˚C to +70˚C)
HRCA2X3840HICC1	3840GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X3840HCCC1	3840GB	C Temp (0˚C to +70˚C) / Coating
HRCA2X1920HICC1	1920GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X1920HCCC1	1920GB	C Temp (0˚C to +70˚C) / Coating
HRCA2X0960HICC1	960GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X0960HCCC1	960GB	C Temp (0˚C to +70˚C) / Coating
HRCA2X0480HICC1	480GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X0480HCCC1	480GB	C Temp (0˚C to +70˚C) / Coating
HRCA2X0240HICC1	240GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X0240HCCC1	240GB	C Temp (0˚C to +70˚C) / Coating
HRCA2X0120HICC1	120GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X0120HCCC1	120GB	C Temp (0˚C to +70˚C) / Coating
HRCA2P3840HI001	3840GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P3840HC001	3840GB	C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P1920HI001	1920GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P1920HC001	1920GB	C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P0960HI001	960GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P0960HC001	960GB	C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P0480HI001	480GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P0480HC001	480GB	C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P0240HI001	240GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P0240HC001	240GB	C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P0120HI001	120GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P0120HC001	120GB	C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P3840HICC1	3840GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P3840HCCC1	3840GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P1920HICC1	1920GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P1920HCCC1	1920GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0960HICC1	960GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0960HCCC1	960GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0480HICC1	480GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0480HCCC1	480GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0240HICC1	240GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0240HCCC1	240GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0120HICC1	120GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0120HCCC1	120GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
