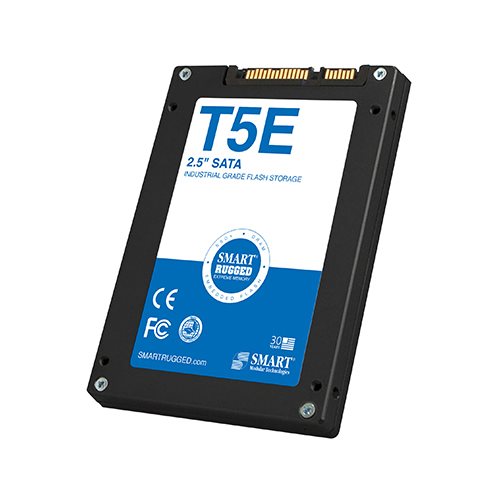

T5E pSLC 2.5" SATA SSD

T Series

SMART's RUGGED SSD T5E products are the ideal solution for ground and air defense, industrial automation, transportation, medical and telecommunication applications, T5E 2.5" SATA solid state drive (SSD) combines high performance, superior reliability and data security into a single ruggedized design.

The SMART T5E SSD is designed to meet the needs of applications where temperature tolerances are as important as high performance and reliability. A robust set of diagnostic information is provided through SSD-specific S.M.A.R.T attributes which can be used to monitor the health of the drives.

T5E TLC 2.5" SATA SSD

T5E M.2 2280 SATA SSD

SafeDATA™

Advanced Error Detection & Correction

AES-256 Encryption

TCG Opal 2.0

Write Protection

Secure Erase

Industrial Temperature (-40°C to +85°C)

Conformal Coating

Pseudo-SLC

Networking & Telecom

Industrial & Factory Automation

Military & Aerospace

Essentials: Product SeriesT5E; NAND Flash TechnologypSLC; InterfaceSATA 3.0 6Gb/s

Performance: Sequential Read (maximum)Up to 550MB/s; Sequential Write (maximum)Up to 535MB/s; 4K Random Read (maximum)Up to 80K IOPS; 4K Random Write (maximum)Up to 50K IOPS; Capacities40GB
80GB
160GB
320GB
640GB
1280GB

Reliability: TDWUp to 10,000 TDW; MTBF> 2,000,000 hours

Environmental: Shock50g half-sine, 11 ms, 3 shocks along each axis, X, Y, Z in each direction; Vibration16.4 g rms 10-2000 Hz random, 3-axes; Operating TemperatureC-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃; Storage Temperature-55℃ to +95℃; Humidity 5% to 95% non-condensing

Physical: Length 100mm; Width 69.85mm; Height7mm


HRCA2X1280JI001	1280GB	I Temp (-40˚C to +85˚C)
HRCA2X1280JC001	1280GB	C Temp (0˚C to +70˚C)
HRCA2X0640JI001	640GB	I Temp (-40˚C to +85˚C)
HRCA2X0640JC001	640GB	C Temp (0˚C to +70˚C)
HRCA2X0320JI001	320GB	I Temp (-40˚C to +85˚C)
HRCA2X0320JC001	320GB	C Temp (0˚C to +70˚C)
HRCA2X0160JI001	160GB	I Temp (-40˚C to +85˚C)
HRCA2X0160JC001	160GB	C Temp (0˚C to +70˚C)
HRCA2X0080JI001	80GB	I Temp (-40˚C to +85˚C)
HRCA2X0080JC001	80GB	C Temp (0˚C to +70˚C)
HRCA2X0040JI001	40GB	I Temp (-40˚C to +85˚C)
HRCA2X0040JC001	40GB	C Temp (0˚C to +70˚C)
HRCA2X1280JICC1	1280GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X1280JCCC1	1280GB	C Temp (0˚C to +70˚C) / Coating
HRCA2X0640JICC1	640GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X0640JCCC1	640GB	C Temp (0˚C to +70˚C) / Coating
HRCA2X0320JICC1	320GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X0320JCCC1	320GB	C Temp (0˚C to +70˚C) / Coating
HRCA2X0160JICC1	160GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X0160JCCC1	160GB	C Temp (0˚C to +70˚C) / Coating
HRCA2X0080JICC1	80GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X0080JCCC1	80GB	C Temp (0˚C to +70˚C) / Coating
HRCA2X0040JICC1	40GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X0040JCCC1	40GB	C Temp (0˚C to +70˚C) / Coating
HRCA2P1280JI001	1280GB	I Temp (-40˚C to +85˚C) / Secure TCG OPAL
HRCA2P1280JC001	1280GB	C Temp (0˚C to +70˚C) / Secure TCG OPAL
HRCA2P0640JI001	640GB	I Temp (-40˚C to +85˚C) / Secure TCG OPAL
HRCA2P0640JC001	640GB	C Temp (0˚C to +70˚C) / Secure TCG OPAL
HRCA2P0320JI001	320GB	I Temp (-40˚C to +85˚C) / Secure TCG OPAL
HRCA2P0320JC001	320GB	C Temp (0˚C to +70˚C) / Secure TCG OPAL
HRCA2P0160JI001	160GB	I Temp (-40˚C to +85˚C) / Secure TCG OPAL
HRCA2P0160JC001	160GB	C Temp (0˚C to +70˚C) / Secure TCG OPAL
HRCA2P0080JI001	80GB	I Temp (-40˚C to +85˚C) / Secure TCG OPAL
HRCA2P0080JC001	80GB	C Temp (0˚C to +70˚C) / Secure TCG OPAL
HRCA2P0040JI001	40GB	I Temp (-40˚C to +85˚C) / Secure TCG OPAL
HRCA2P0040JC001	40GB	C Temp (0˚C to +70˚C) / Secure TCG OPAL
HRCA2P1280JICC1	1280GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P1280JCCC1	1280GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0640JICC1	640GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0640JCCC1	640GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0320JICC1	320GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0320JCCC1	320GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0160JICC1	160GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0160JCCC1	160GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0080JICC1	80GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0080JCCC1	80GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0040JICC1	40GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0040JCCC1	40GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
