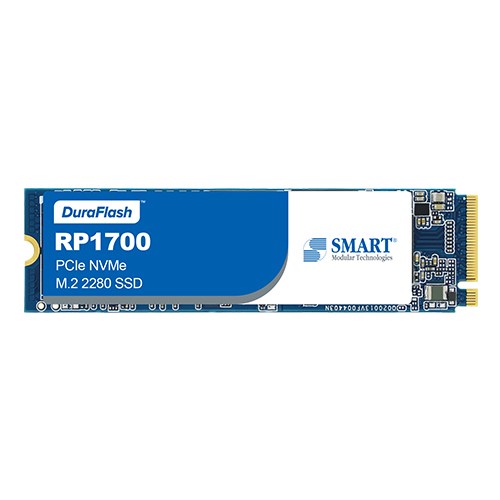

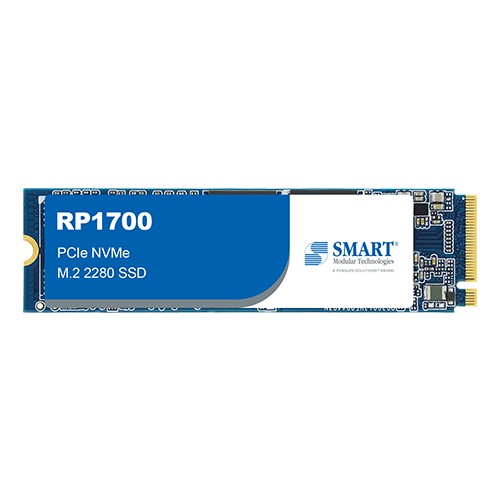

RP1700 | PCIe NVMe | M.2 2280 SSD
NVMe
SMART’s RP1700 PCIe NVMe M.2 2280 embedded SSDs target servers, storage cache/accelerators, networking, and data communications applications requiring reliable internal storage with a small footprint. They are also an ideal fit for mobile and embedded computing, medical, automotive, and industrial applications.
The RP1700 products feature a PCIe Gen3 x4 interface and are compliant to NVMe 1.3 specification. The RP1700 PCIe NVMe M.2 2280 SSDs support TCG Opal 2.0 as standard, and are easily integrated into a host system without any BIOS modifications or additional drivers. They incorporate on-board error detection and correction, and static wear-leveling algorithms to provide reliable operation over the product life cycle.
- Essentials
- RP1700
- 3D TLC
- PCIe Gen3 x4 NVMe 1.3
- Performance
- Up to 2450MB/s
- Up to 1900MB/s
- Up to 270K IOPS
- Up to 420K IOPS
- 240GB
960GB
1920GB
- Reliability
- 240GB: 240TBW
960GB: 1120TBW
1920GB: 2400TBW
(JEDEC® Client Workload) - > 2,000,000 hours
- Environmental
- 1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
- 20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
- C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃ - -40℃ to +85℃
- 40℃, Operation: 90% RH, Storage: 93% RH
- Physical
- 80mm
- 22mm
- 2.15mm
