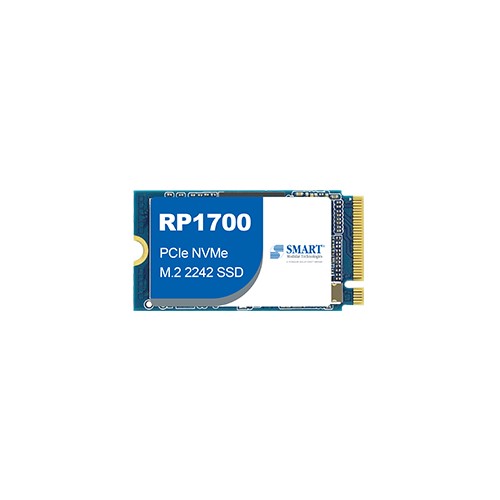

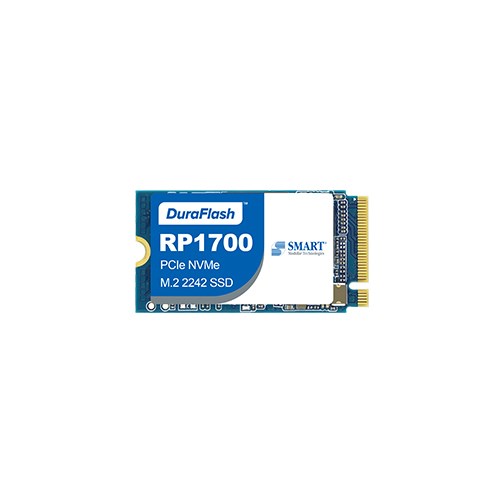

RP1700 | PCIe NVMe | M.2 2242 SSD

NVMe

SMART’s RP1700 PCIe NVMe M.2 2242 embedded SSDs target servers, storage cache/accelerators, networking, and data communications applications requiring reliable internal storage with a small footprint. They are also an ideal fit for mobile and embedded computing, medical, automotive, and industrial applications.

The RP1700 products feature a PCIe Gen3 x4 interface and are compliant to NVMe 1.3 specification. The RP1700 PCIe NVMe M.2 2242 SSDs support TCG Opal 2.0 as standard, and are easily integrated into a host system without any BIOS modifications or additional drivers. They incorporate on-board error detection and correction, and static wear-leveling algorithms to provide reliable operation over the product life cycle.

Essentials
RP1700
3D TLC
PCIe Gen3 x4 NVMe 1.3
Performance
Up to 2450MB/s
Up to 1900MB/s
Up to 270K IOPS
Up to 420K IOPS
120GB
480GB
960GB
Reliability
120GB: 110TBW
480GB: 520TBW
960GB: 1120TBW
(JEDEC® Client Workload)
> 2,000,000 hours
0.15
Environmental
1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃
-40℃ to +85℃
40℃, Operation: 90% RH, Storage: 93% RH
Physical
42mm
22mm
3.5mm
SVM2P4B960GWTIDA960GBI-Temp (-40˚C to +85˚C)
SVM2P4B480GWTIDA480GBI-Temp (-40˚C to +85˚C)
SVM2P4B120GWTD1120GBC-Temp (0˚C to +70˚C)
