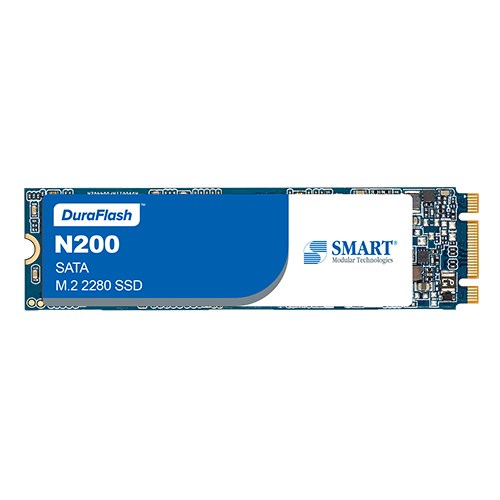

N200 | SATA | M.2 2280 SSD

SATA

SMART’s N200 SATA M.2 2280 SSDs provide an economic yet highly reliable mass storage in a M.2 form factor which is available in both commercial and industrial temperature ranges. The N200 product line is a SATA III solid state storage solution that offers excellent sequential read/write performance. It is suitable for embedded applications that require lower drive capacity and utilize the drive for boot up code and OS code storage.

SMART’s N200 SATA M.2 2280 SSDs are offered with Triple-Level Cell (TLC) 3D NAND. They provide enhanced reliability by incorporating on-board error detection and correction, and static Wear-Leveling algorithms to provide reliable operation over the product life.

Essentials
N200
3D TLC
SATA 3.0 6Gb/s
Performance
Up to 550MB/s
Up to 465MB/s
Up to 61K IOPS
Up to 80K IOPS
32GB
64GB
128GB
256GB
120GB
Reliability
32GB: 15TBW
64GB: 30TBW
120GB: 60TBW
128GB: 60TBW
256GB: 120TBW
(JEDEC® Client Workload)
> 1,500,000 hours
Environmental
1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃
-40℃ to +85℃
40℃, Operation: 90% RH, Storage: 93% RH
Physical
80mm
22mm
2.3mm
SVM2S86256GNTIE1256GBI-Temp (-40˚C to +85˚C)
SVM2SH6128GNTD1128GBC-Temp (0˚C to +70˚C)
SVM2S86120GNTD1120GBC-Temp (0˚C to +70˚C)
SVM2S86064GNTIE164GBI-Temp (-40˚C to +85˚C)
SVM2S86032GNTIE132GBI-Temp (-40˚C to +85˚C)
