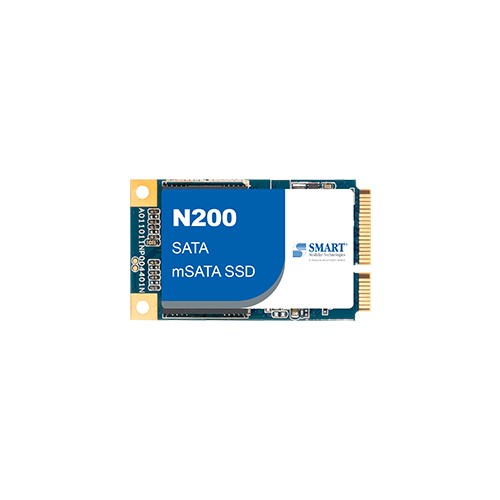

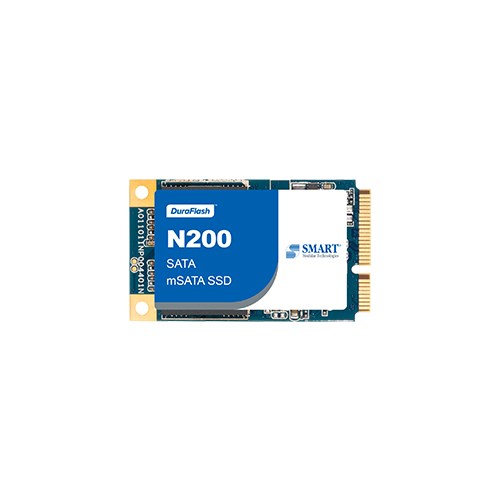

N200 | SATA | mSATA SSD
mSATA SSDs
SMART’s N200 mSATA SSDs provide an economic yet highly reliable mass storage in an mSATA form factor which is available in both commercial and industrial temperature ranges. The N200 product line is a SATA III solid state storage solution that offers excellent sequential read/write performance. It is suitable for embedded applications that require lower drive capacity and utilize the drive for boot up code and OS code storage.
SMART’s N200 mSATA SSDs are offered with Triple-Level Cell (TLC) 3D NAND. They provide enhanced reliability by incorporating on-board error detection and correction, and static Wear-Leveling algorithms to provide reliable operation over the product life.
- Essentials
- N200
- 3D TLC
- SATA 3.0 6Gb/s
- Performance
- Up to 550MB/s
- Up to 360MB/s
- Up to 40K IOPS
- Up to 51K IOPS
- 32GB
64GB
128GB
120GB
- Reliability
- 32GB: 15TBW
64GB: 30TBW
120GB: 60TBW
128GB: 60TBW
(JEDEC® Client Workload) - > 1,500,000 hours
- Environmental
- 1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
- 20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
- C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃ - -40℃ to +85℃
- 40℃, Operation: 90% RH, Storage: 93% RH
- Physical
- 50.8mm
- 29.85mm
- 4.85mm
