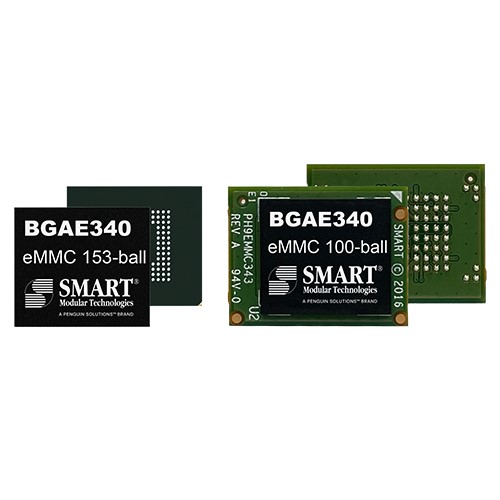

BGAE340 pSLC | eMMC | 153-ball/100-ball
eMMC
SMART’s BGAE340 eMMC is an embedded memory solution that combines 2D-MLC NAND Flash Memory, an embedded MMC (MultiMediaCard) controller, and advanced firmware in a small BGA (Ball Grid Array) package that provides a stable, yet cost effective high-density embedded storage.
SMART’s BGAE340 eMMC is compliant to eMMC v5.1 specifications and is available in the standard JEDEC 0.5mm pitch, 153-ball BGA package, as well 1.0mm pitch, 100-ball BGA package. eMMC can simplify system design because of the widely adopted JEDEC® eMMC standard interface in host system chipsets and operating system software driver support.
Explore our full range of eMMC products: https://smartsemi.com/products-flash/
- Essentials
- BGAE340
- pSLC (MLC)
- eMMC v5.1
- 153 ball
100 ball
- Performance
- Up to 250MB/s
- Up to 65MB/s
- Up to 10K IOPS
- Up to 2K IOPS
- 2GB
4GB
- Reliability
- 2GB: 50 TBW
4GB: 100 TBW
(JEDEC Sequential Workload)
- Environmental
- 1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
- 20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
- I-temp: -40℃ to +85℃
- -40℃ to +85℃
- 40℃, Operation: 90% RH, Storage: 93% RH
- Physical
- 11.5mm (153-ball)
14mm (100-ball) - 13mm (153-ball)
18mm (100-ball) - 1mm (153-ball)
2.45mm (100-ball)
