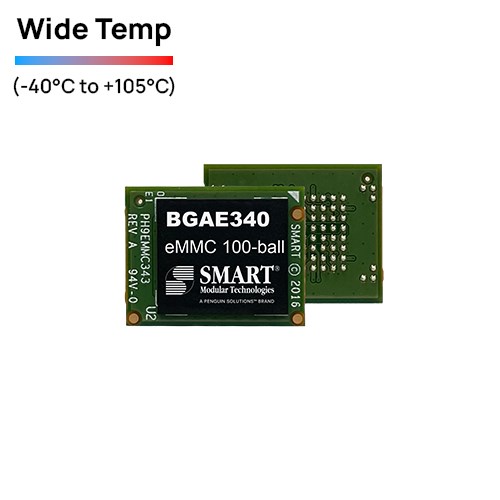

BGAE340 MLC | eMMC | 100-ball

eMMC

SMART’s BGAE340 eMMC is an embedded memory solution that combines 2D-MLC NAND Flash Memory, an embedded MMC (MultiMediaCard) controller, and advanced firmware in a small BGA (Ball Grid Array) package that provides a stable, yet cost effective high-density embedded storage.

SMART’s BGAE340 eMMC is compliant to eMMC v5.1 specification and is available in the standard JEDEC 1.0mm pitch, 100-ball BGA package. The 100-ball package offers larger ball pitch and ball diameter which enables lower cost PCB designs and simplifies PCB routing with wider metal traces.

Explore our full range of eMMC products.

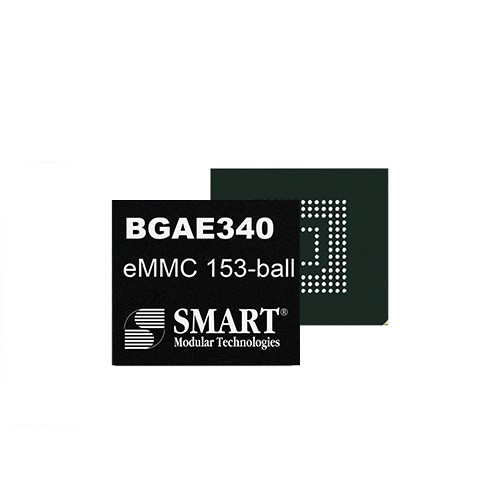

BGAE340 pSLC | eMMC | 153-ball/100-ball

Wear-Leveling

Garbage Collection

TRIM Command

Over-Provisioning

Surveillance

Networking & Telecom

Essentials: Product SeriesBGAE340; NAND Flash TechnologyMLC; InterfaceeMMC v5.1; Ball Count100 ball

Performance: Sequential Read (maximum)Up to 285MB/s; Sequential Write (maximum)Up to 94MB/s; 4K Random Read (maximum)Up to 7290 IOPS; 4K Random Write (maximum)Up to 2387 IOPS; Capacities8GB
16GB

Reliability: TBW8GB: 20 TBW
16GB: 40 TBW
(JEDEC Sequential Workload)

Environmental: Shock1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction; Vibration20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis; Operating TemperatureI-temp: -40℃ to +85℃
W-temp: -40℃ to +105℃; Storage Temperature-40℃ to +85℃
-40℃ to +105℃; Humidity40℃, Operation: 90% RH, Storage: 93% RH

Physical: Length14mm (100-ball); Width18mm (100-ball); Height2.45mm (100-ball)


SP9QAGH2AHW01	16GB	100-ball / W-temp (-40℃ to +105℃)
SP9Q8GH2AHW01	8GB	100-ball / W-temp (-40℃ to +105℃)
SPQ8GH2AHI01	8GB	100-ball / I-temp (-40℃ to +85℃)
