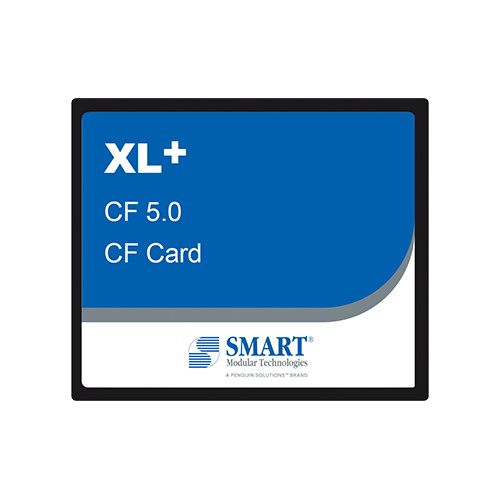

XL+ | CF 5.0 | CF Card
CF Cards
SMART’s DuraFlash™ XL+ CF 5.0 CF Cards offer reliable, high performance in an industry standard CompactFlash® (CF) form factor. The industrial-grade XL+ CF 5.0 CF Cards specifically support the OEM markets of networking, telecommunication and data communication, embedded computing, medical, and industrial applications.
Available in capacities from 512MB to 64GB, SMART’s XL+ CF 5.0 CF Cards offer an advanced static Wear-Leveling algorithm for extending product lifespan in the most demanding OEM applications. Additionally, SMART has designed its product using Single-Level Cell (SLC). SLC NAND Flash technology is used for the enhanced data integrity and life time expectation in critical embedded applications.
- Essentials
- XL+
- SLC
- CF 5.0
- Performance
- Up to 55MB/s
- Up to 27MB/s
- 512MB
1GB
2GB
4GB
8GB
16GB
32GB
64GB
- Reliability
- 512MB: 1.5TBW
1GB: 3TBW
2GB: 6TBW
4GB: 12TBW
8GB: 24TBW
16GB: 48TBW
32GB: 96TBW
64GB: 192TBW - > 2,000,000 hours
- Environmental
- 160G@1ms, 325G@2ms
- 15G Peak-to-Peak
- C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃ - -40℃ to +85℃
- 5% to 95%, non-condensing, relative humidity
- Physical
- 36.4mm
- 42.8mm
- 3.3mm
SG9CF64GHYDD | 64GB | C-Temp (0˚C to +70˚C) |
SG9CF64GHYDDI | 64GB | I-temp (-40℃ to 85℃) |
SG9CF32GHYDD | 32GB | C-Temp (0˚C to +70˚C) |
SG9CF32GHYDDI | 32GB | I-temp (-40℃ to 85℃) |
SG9CF16GHYDC | 16GB | C-Temp (0˚C to +70˚C) |
SG9CF16GHYDCI | 16GB | I-temp (-40℃ to 85℃) |
SG9CF8GHYDB | 8GB | C-Temp (0˚C to +70˚C) |
SG9CF8GHYDBI | 8GB | I-temp (-40℃ to 85℃) |
SG9CF4GHYDA | 4GB | C-Temp (0˚C to +70˚C) |
SG9CF4GHYDAI | 4GB | I-temp (-40℃ to 85℃) |
SG9CF2GHYD9 | 2GB | C-Temp (0˚C to +70˚C) |
SG9CF2GHYD9I | 2GB | I-temp (-40℃ to 85℃) |
SG9CF1GHYD4 | 1GB | C-Temp (0˚C to +70˚C) |
SG9CF1GHYD4I | 1GB | I-temp (-40℃ to 85℃) |
SG9CF512HYD2 | 512MB | C-Temp (0˚C to +70˚C) |
SG9CF512HYD2I | 512MB | I-temp (-40℃ to 85℃) |
