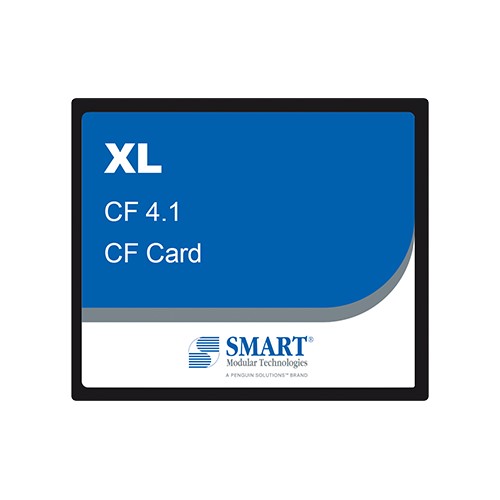

XL | CF 4.1 | CF Card
CF Cards
SMART’s DuraFlash XL CF 4.1 CF Cards offer reliable, high performance in an industry standard CompactFlash® (CF) form factor. The industrial-grade XL CF 4.1 CF Card products specifically support the OEM markets of networking, telecommunication and data communication, embedded computing, medical, and industrial applications.
Available in capacities from 128MB to 8GB, SMART’s XL CF 4.1 CF Cards offer an advanced static Wear-Leveling algorithm for extending product lifespan in the most demanding OEM applications. Additionally, SMART has designed its product using Single-Level Cell (SLC). SLC NAND Flash technology is used for the enhanced data integrity and life time expectation in critical embedded applications.
- Essentials
- XL
- SLC
- CF 4.1
- Performance
- Up to 30MB/s
- Up to 12MB/s
- 128MB
256MB
512MB
1GB
2GB
4GB
8GB
- Reliability
- 256MB: 1.3TBW
512MB: 1.5TBW
1GB: 3TBW
2GB: 6TBW
4GB: 12TBW
8GB: 24TBW - > 4,374,870 hours
- Environmental
- 160G@1ms, 325G@2ms
- 15G Peak-to-Peak
- C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃ - -40℃ to +85℃
- 40℃, Operation: 90% RH, Storage: 93% RH
- Physical
- 36.4mm
- 42.8mm
- 3.3mm
| SP9FD08GH3BAIS02 | 8GB | I-temp (-40℃ to 85℃) |
| SP9FD08GH3BACS02 | 8GB | C-temp (0˚C to +70˚C) |
| SP9FD04GH3BAIS02 | 4GB | I-temp (-40℃ to 85℃) |
| SP9FD04GH3BACS02 | 4GB | C-temp (0˚C to +70˚C) |
| SP9FD02GH3BAIS02 | 2GB | I-temp (-40℃ to 85℃) |
| SP9FD02GH3B8IS02 | 2GB | I-temp (-40℃ to 85℃) |
| SP9FD02GH3BACS02 | 2GB | C-temp (0˚C to +70˚C) |
| SP9FD02GH3B8CS02 | 2GB | C-temp (0˚C to +70˚C) |
| SP9FD01GH3B8IS02 | 1GB | I-temp (-40℃ to 85℃) |
| SP9FD01GH3B4IS02 | 1GB | I-temp (-40℃ to 85℃) |
| SP9FD01GH3B8CS02 | 1GB | C-temp (0˚C to +70˚C) |
| SP9FD01GH3B4CS02 | 1GB | C-temp (0˚C to +70˚C) |
| SP9FD512H3B4IS02 | 512MB | I-temp (-40℃ to 85℃) |
| SP9FD512H3B2IS02 | 512MB | I-temp (-40℃ to 85℃) |
| SP9FD512H3B4CS02 | 512MB | C-temp (0˚C to +70˚C) |
| SP9FD512H3B2CS02 | 512MB | C-temp (0˚C to +70˚C) |
| SP9FD256H3B2IS02 | 256MB | I-temp (-40℃ to 85℃) |
| SP9FD256H3B1IS02 | 256MB | I-temp (-40℃ to 85℃) |
| SP9FD256H3B2CS02 | 256MB | C-temp (0˚C to +70˚C) |
| SP9FD256H3B1CS02 | 256MB | C-temp (0˚C to +70˚C) |
| SP9FD128H3B1IS02 | 128MB | I-temp (-40℃ to 85℃) |
| SP9FD128H3B1CS02 | 128MB | C-temp (0˚C to +70˚C) |
