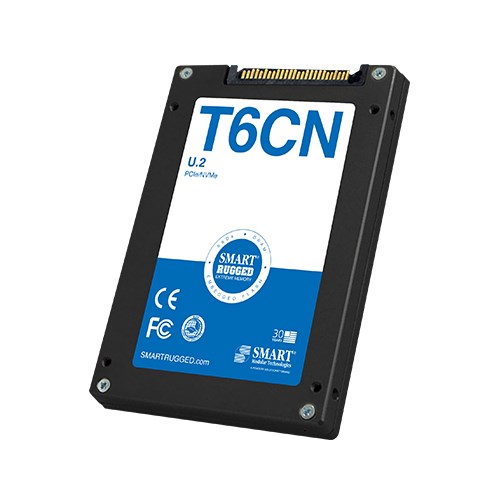

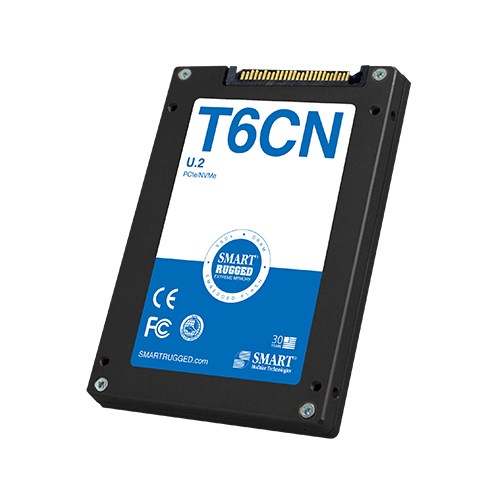

T6CN U.2 PCIe NVMe SSD
T Series
SMART’s RUGGED T6CN U.2 PCIe NVMe solid state drives (SSDs) deliver high performance, high-capacity storage solutions optimized for defense, aerospace and other applications requiring durable, rugged and secure storage.
The T6CN PCIe NVMe data storage RUGGED SSDs integrate high-speed PCIe Gen4 x4 interface with 3D NAND Flash memory technology and capacities up to 15,360GB, delivering a high-performance solution for a wide range of applications. The T6CN RUGGED SSDs are available in U.2, M.2 2280, and EDSFF E1.S form factors.
- Essentials
- T6CN
- 3D TLC
- PCIe Gen4 x4
- Performance
- Up to 3500MB/s
- Up to 3000MB/s
- Up to 500K IOPS
- Up to 55K IOPS
- 960GB
1920GB
3840GB
7680GB
15360GB
- Reliability
- Up to 16,800 TBW (C-Temp, 15,360GB)
Up to 9,600 TBW (I-Temp, 15,360GB) - > 2,000,000 hours
- Environmental
- 50G (11 ms duration, half sine wave)
- 10G (peak, 10-2000Hz)
- C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃ - C-temp: -40℃ to +85℃
I-temp: -50℃ to +95℃ - 5% to 95% non-condensing
- Physical
- 100mm
- 69.85mm
- 7mm
| HRMN7X016TLC001 | 15360GB | C Temp (0˚C to +70˚C) |
| HRMN7X7680LC001 | 7680GB | C Temp (0˚C to +70˚C) |
| HRMN7X3840LC001 | 3840GB | C Temp (0˚C to +70˚C) |
| HRMN7X1920LC001 | 1920GB | C Temp (0˚C to +70˚C) |
| HRMN7X0960LC001 | 960GB | C Temp (0˚C to +70˚C) |
| HRMN7X016TRI001 | 15360GB | I Temp (-40˚C to +85˚C) |
| HRMN7X7680RI001 | 7680GB | I Temp (-40˚C to +85˚C) |
| HRMN7X3840RI001 | 3840GB | I Temp (-40˚C to +85˚C) |
| HRMN7X1920RI001 | 1920GB | I Temp (-40˚C to +85˚C) |
| HRMN7X0960RI001 | 960GB | I Temp (-40˚C to +85˚C) |
