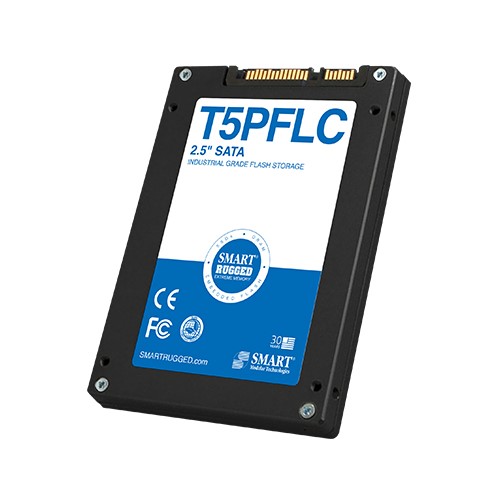

T5PFLC 2.5" SATA SSD
T Series
SMART Modular Technologies' T5PFLC 2.5" SATA solid state drives (SSDs) deliver high performance, high capacity storage solutions optimized for commercial, industrial and other applications requiring durable and secure storage. The T5PFLC also comes equipped with FIPS 140-2 encryption capabilities.
Powered by a flexible flash controller, T5PFLC SSDs provide sustained read/write performance to meet the needs of high throughput database applications, as well as transactional and boot and load applications.
T5PFLC SSDs offer up to 2TB of storage using 3D TLC NAND Flash. They are more reliable, offer superior performance, and require less power and cooling than traditional hard disk drives (HDDs).
- Essentials
- T5PF
- 3D TLC
- SATA 3.0 6Gb/s
- Performance
- Up to 500MB/s
- Up to 470MB/s
- Up to 50K IOPS
- Up to 48K IOPS
- 120GB
240GB
480GB
960GB
1920GB
- Reliability
- Up to 2,800 TDW
- > 2,000,000 hours
- Environmental
- 50g half-sine, 11 ms, 3 shocks along each axis, X, Y, Z in each direction
- 16.4 g rms 10-2000 Hz random, 3-axes
- C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃ - -55℃ to +95℃
- 5% to 95% non-condensing
- Physical
- 100mm
- 69.85mm
- 7mm
HRJA2F1920HC001 | 1920GB | C-temp (0˚C to +70˚C) |
HRJA2F1920HI001 | 1920GB | I-Temp (-40˚C to +85˚C) |
HRJA2F0960HC001 | 960GB | C-temp (0˚C to +70˚C) |
HRJA2F0960HI001 | 960GB | I-Temp (-40˚C to +85˚C) |
HRJA2F0480HC001 | 480GB | C-temp (0˚C to +70˚C) |
HRJA2F0480HI001 | 480GB | I-Temp (-40˚C to +85˚C) |
HRJA2F0240HC001 | 240GB | C-temp (0˚C to +70˚C) |
HRJA2F0240HI001 | 240GB | I-Temp (-40˚C to +85˚C) |
HRJA2F0120HC001 | 120GB | C-temp (0˚C to +70˚C) |
HRJA2F0120HI001 | 120GB | I-Temp (-40˚C to +85˚C) |
