T5PF 2.5" SATA SSD
T Series

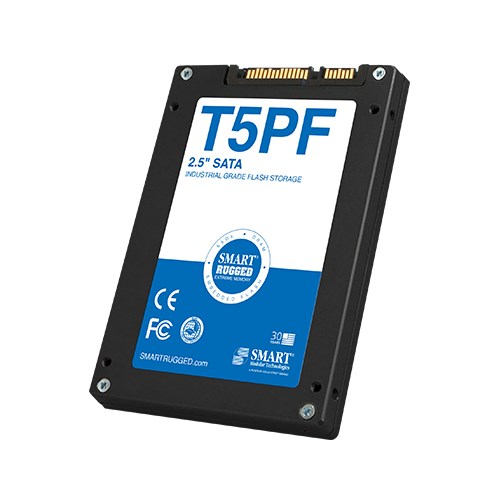

SMART Modular Technologies' T5PF 2.5" SATA solid state drives (SSDs) with FIPS 140-2 compliance deliver high performance, high capacity storage solutions optimized for defense, aerospace and other applications requiring durable, rugged and secure storage. Powered by a flexible, flash controller, T5PF SSDs provide sustained read\write performance to meet the needs of high throughput applications such as flight data recorders and sensor data capture. T5PF SSDs are also well suited for high-reliability telemetry, surveillance, and mission-critical applications.
T5PF SSDs offer up to 4TB of storage using 3D TLC NAND Flash. They are more reliable, offer superior performance, and require less power and cooling than traditional hard disk drives (HDDs). Conforming to SMART's "true" industrial grade standards, they are superior to typical SSDs and HDDs in terms of ruggedness, vibration and shock resistance, and environmental resilience.
- Essentials
- T5PF
- 3D TLC
- SATA 3.0 6Gb/s
- Performance
- Up to 500MB/s
- Up to 470MB/s
- Up to 50K IOPS
- Up to 48K IOPS
- 480GB
960GB
1920GB
3840GB
- Reliability
- Up to 2,100 TDW
- > 2,000,000 hours
- Environmental
- 50g half-sine, 11 ms, 3 shocks along each axis, X, Y, Z in each direction
- 16.4 g rms 10-2000 Hz random, 3-axes
- I-temp: -40℃ to +85℃
- -55℃ to +95℃
- 5% to 95% non-condensing
- Physical
- 100mm
- 69.85mm
- 7mm
