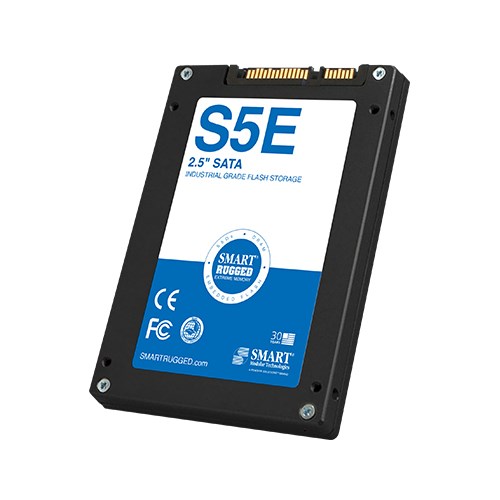

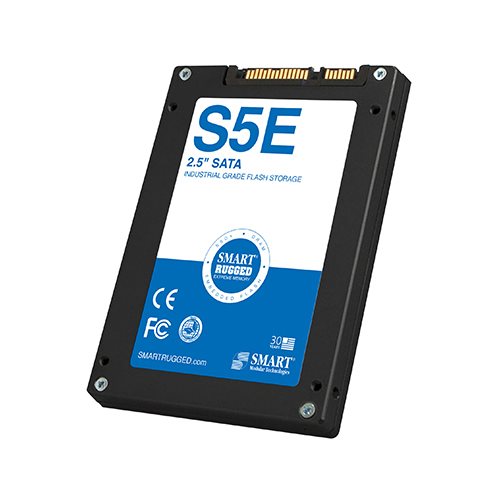

S5E 2.5" SATA SSD

S Series

SMART's RUGGED SSD S5E products are the ideal solution for ground and air defense, industrial automation, transportation, medical and telecommunication applications, the S5E 2.5" SATA solid state drive (SSD) combines high performance, superior reliability and data security into a single ruggedized design.

The SMART S5E SSD is designed to meet the needs of applications where temperature tolerances are as important as high performance and reliability. A robust set of diagnostic information is provided through SSD-specific S.M.A.R.T attributes which can be used to monitor the health of the drives.

SafeDATA™
Advanced Error Detection & Correction
AES-256 Encryption
TCG Opal 2.0
Write Protection
Secure Erase
Industrial Temperature (-40°C to +85°C)
Conformal Coating
Networking & Telecom
Industrial & Factory Automation
Military & Aerospace
Essentials
S5E
SLC
SATA 3.0 6Gb/s
Performance
Up to 530MB/s
Up to 530MB/s
Up to 80K IOPS
Up to 50K IOPS
60GB
120GB
240GB
480GB
Reliability
Up to 30,000 TDW
> 2,000,000 hours
Environmental
50g half-sine, 11 ms, 3 shocks along each axis, X, Y, Z in each direction
16.4 g rms 10-2000 Hz random, 3-axes
C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃
-55℃ to +95℃
5% to 95% non-condensing
Physical
100mm
69.85mm
7mm
HRCA2X0480AI001480GBI Temp (-40˚C to +85˚C)
HRCA2X0480AC001480GBC Temp (0˚C to +70˚C)
HRCA2X0240AI001240GBI Temp (-40˚C to +85˚C)
HRCA2X0240AC001240GBC Temp (0˚C to +70˚C)
HRCA2X0120AI001120GBI Temp (-40˚C to +85˚C)
HRCA2X0120AC001120GBC Temp (0˚C to +70˚C)
HRCA2X0060AI00160GBI Temp (-40˚C to +85˚C)
HRCA2X0060AC00160GBC Temp (0˚C to +70˚C)
HRCA2X0480AICC1480GBI Temp (-40˚C to +85˚C) / Coating
HRCA2X0480ACCC1480GBC Temp (0˚C to +70˚C) / Coating
HRCA2X0240AICC1240GBI Temp (-40˚C to +85˚C) / Coating
HRCA2X0240ACCC1240GBC Temp (0˚C to +70˚C) / Coating
HRCA2X0120AICC1120GBI Temp (-40˚C to +85˚C) / Coating
HRCA2X0120ACCC1120GBC Temp (0˚C to +70˚C) / Coating
HRCA2X0060AICC160GBI Temp (-40˚C to +85˚C) / Coating
HRCA2X0060ACCC160GBC Temp (0˚C to +70˚C) / Coating
HRCA2P0480AI001480GBI Temp (-40˚C to +85˚C) / Secure TCG OPAL
HRCA2P0480AC001480GBC Temp (0˚C to +70˚C) / Secure TCG OPAL
HRCA2P0240AI001240GBI Temp (-40˚C to +85˚C) / Secure TCG OPAL
HRCA2P0240AC001240GBC Temp (0˚C to +70˚C) / Secure TCG OPAL
HRCA2P0120AI001120GBI Temp (-40˚C to +85˚C) / Secure TCG OPAL
HRCA2P0120AC001120GBC Temp (0˚C to +70˚C) / Secure TCG OPAL
HRCA2P0060AI00160GBI Temp (-40˚C to +85˚C) / Secure TCG OPAL
HRCA2P0060AC00160GBC Temp (0˚C to +70˚C) / Secure TCG OPAL
HRCA2P0480AICC1480GBI Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0480ACCC1480GBC Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0240AICC1240GBI Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0240ACCC1240GBC Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0120AICC1120GBI Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0120ACCC1120GBC Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0060AICC160GBI Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0060ACCC160GBC Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
