RU150e | USB 2.0 | eUSB

eUSB

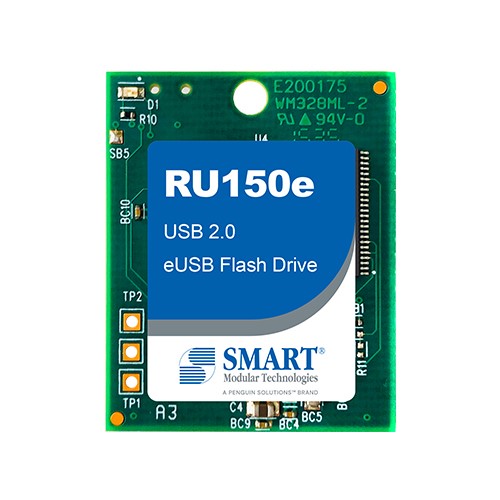

SMART’s DuraFlash RU150e USB 2.0 eUSB Flash Drive is designed as the main boot and storage device in embedded systems. The eUSB’s small form factor, lower power consumption, and fast access times, offer distinct technical advantages over more traditional mass storage devices.

Utilizing the USB interface, eUSB products are easily integrated into host systems without any special BIOS modifications or additional device drivers. SMART's RU150e USB 2.0 eUSB Flash Drives provide reliability by incorporating onboard error detection and correction. Static and dynamic Wear-Leveling algorithms also help to produce reliable operation over product life cycles.

Advanced Error Detection & Correction

Wear-Leveling

Garbage Collection

Over-Provisioning

Industrial & Factory Automation

Military & Aerospace

Essentials: Product SeriesRU150e; NAND Flash TechnologySLC; InterfaceUSB 2.0

Performance: Sequential Read (maximum)Up to 35MB/s; Sequential Write (maximum)Up to 27MB/s; Capacities4GB
8GB
16GB
32GB

Reliability: TBW4GB: 160TBW
8GB: 320TBW
16GB: 640TBW
32GB: 1280TBW
(JEDEC® Client Workload); MTBF>3,900,000 hours

Environmental: Shock200 g, 2 msec, 1 shock along each axis, X, Y, and Z; Vibration1.04g rms, 2 Hz to 200 Hz, 10 minutes each 3 axes; Operating TemperatureC-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃; Storage Temperature-40℃ to +85℃; Humidity40℃, Operation: 90% RH, Storage: 93% RH

Physical: Length36.9mm; Width26.6mm; HeightU: Pin pitch 2.54mm, H: 7.50mm
L: Pin pitch 2.54mm, H: 9.78mm
M: Pin pitch 2.00mm, H: 3.68mm


SPEU52M032GQDUC2	32GB	C-Temp (0˚C to +70˚C) / 2mm Connector
SPEU32M032GQDUC2	32GB	C-Temp (0˚C to +70˚C) / 2mm Connector
SPEU52M032GQDUI2	32GB	I-temp (-40℃ to +85℃) / 2mm Connector
SPEU32M032GQDUI2	32GB	I-temp (-40℃ to +85℃) / 2mm Connector
SPEU52M016GQCUC2	16GB	C-Temp (0˚C to +70˚C) / 2mm Connector
SPEU32M016GQCUC2	16GB	C-Temp (0˚C to +70˚C) / 2mm Connector
SPEU52M016GQCUI2	16GB	I-temp (-40℃ to +85℃) / 2mm Connector
SPEU32M016GQCUI2	16GB	I-temp (-40℃ to +85℃) / 2mm Connector
SPEU52M008GQBUC2	8GB	C-Temp (0˚C to +70˚C) / 2mm Connector
SPEU32M008GQBUC2	8GB	C-Temp (0˚C to +70˚C) / 2mm Connector
SPEU52M008GQBUI2	8GB	I-temp (-40℃ to +85℃) / 2mm Connector
SPEU32M008GQBUI2	8GB	I-temp (-40℃ to +85℃) / 2mm Connector
SPEU52M004GQAUC2	4GB	C-Temp (0˚C to +70˚C) / 2mm Connector
SPEU32M004GQAUC2	4GB	C-Temp (0˚C to +70˚C) / 2mm Connector
SPEU52M004GQAUI2	4GB	I-temp (-40℃ to +85℃) / 2mm Connector
SPEU32M004GQAUI2	4GB	I-temp (-40℃ to +85℃) / 2mm Connector
SPEU52U032GQDUC2	32GB	C-Temp (0˚C to +70˚C) / Low Profile Connector
SPEU32U032GQDUC2	32GB	C-Temp (0˚C to +70˚C) / Low Profile Connector
SPEU52U032GQDUI2	32GB	I-temp (-40℃ to +85℃) / Low Profile Connector
SPEU32U032GQDUI2	32GB	I-temp (-40℃ to +85℃) / Low Profile Connector
SPEU52U016GQCUC2	16GB	C-Temp (0˚C to +70˚C) / Low Profile Connector
SPEU32U016GQCUC2	16GB	C-Temp (0˚C to +70˚C) / Low Profile Connector
SPEU52U016GQCUI2	16GB	I-temp (-40℃ to +85℃) / Low Profile Connector
SPEU32U016GQCUI2	16GB	I-temp (-40℃ to +85℃) / Low Profile Connector
SPEU52U008GQBUC2	8GB	C-Temp (0˚C to +70˚C) / Low Profile Connector
SPEU32U008GQBUC2	8GB	C-Temp (0˚C to +70˚C) / Low Profile Connector
SPEU52U008GQBUI2	8GB	I-temp (-40℃ to +85℃) / Low Profile Connector
SPEU32U008GQBUI2	8GB	I-temp (-40℃ to +85℃) / Low Profile Connector
SPEU52U004GQAUC2	4GB	C-Temp (0˚C to +70˚C) / Low Profile Connector
SPEU32U004GQAUC2	4GB	C-Temp (0˚C to +70˚C) / Low Profile Connector
SPEU52U004GQAUI2	4GB	I-temp (-40℃ to +85℃) / Low Profile Connector
SPEU32U004GQAUI2	4GB	I-temp (-40℃ to +85℃) / Low Profile Connector
SPEU52L032GQDUC2	32GB	C-Temp (0˚C to +70˚C) / STD Profile Connector
SPEU52L032GQDUI2	32GB	I-temp (-40℃ to +85℃) / STD Profile Connector
SPEU52L016GQCUC2	16GB	C-Temp (0˚C to +70˚C) / STD Profile Connector
SPEU52L016GQCUI2	16GB	I-temp (-40℃ to +85℃) / STD Profile Connector
SPEU52L008GQBUC2	8GB	C-Temp (0˚C to +70˚C) / STD Profile Connector
SPEU52L008GQBUI2	8GB	I-temp (-40℃ to +85℃) / STD Profile Connector
SPEU52L004GQAUC2	4GB	C-Temp (0˚C to +70˚C) / STD Profile Connector
SPEU52L004GQAUI2	4GB	I-temp (-40℃ to +85℃) / STD Profile Connector
