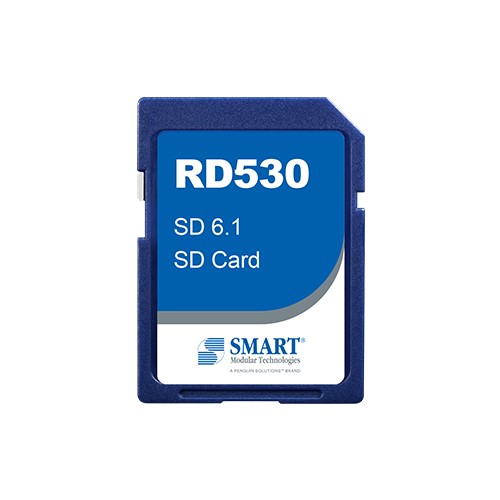

RD530 | SD 6.1 | SD Card
SD Cards
SMART’s RD530 SD 6.1 SD Cards are fully SD UHS-I compliant. Offered in commercial and industrial temperature versions, the RD530 industrial SD Cards are also a natural fit for mobile and embedded computing, medical, automotive and industrial applications.
SMART’s SD Memory Cards offer reliable, high performance operation in an industry standard ultrasonic welded SD housing. They are available in 16 GB capacity. Incorporating on-board error detection and correction algorithms and static and dynamic wear leveling techniques insure SMART’s SD Memory Cards provide years of reliable operation.
Explore our full range of SD products: https://smartsemi.com/products-flash/sdcards/
(Note: Product images are for promotional purposes only. Labels may not be representative of the actual product.)
Product Family Overview
Specifications
- Essentials
- RD530
- pSLC
- SD 6.1
- Performance
- Up to 100MB/s
- Up to 85MB/s
- 16GB
- Reliability
- 16GB: 450TBW
(Sequential Workload) - > 3,000,000 hours
- Environmental
- Plus with Half-Sine, 500G/2ms. 6 faces, 5 times/face
- Displacement: 20-80Hz/1.52mm. Acceleration: 80-2000HZ/20G. 30mins/axis.
- C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃ - -40℃ to +85℃
- 40℃/93%RH@500hrs
- Physical
- 32mm
- 24mm
- 2.1mm
Ordering Information
Part Number | Capacity | Note |
---|---|---|
SV9SD16GPHKFUCD1 | 16GB | C-Temp (0˚C to +70˚C) |
SV9SD16GPHKFUID1 | 16GB | I-Temp (-40˚C to +85˚C) |
Download
Documentation | Last Updated |
---|---|
SMART Flash Storage & Memory Module Product Brochure_2024 | 10/16/2024 |
SMART RD530 SD Card_Product Brief | 10/14/2024 |
