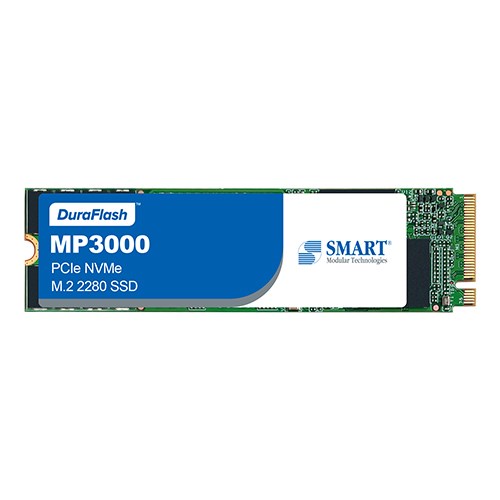

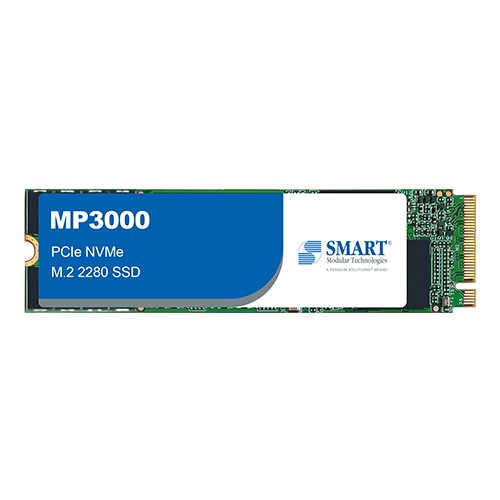

MP3000 | PCIe NVMe | M.2 2280 SSD

NVMe

SMART’s MP3000 PCIe NVMe M.2 2280 SSDs incorporate the latest generation 3D NAND-technology to deliver high performance with endurance up to one drive writes per day (1 DWPD) for five years. The MP3000 SSDs offer better cost per bit over previous 64-layer and 96-layer NAND generations without sacrificing performance and reliability.

SMART’s MP3000 SSDs feature a PCIe Gen4 x4 interface and are compliant to NVMe 1.4 specification. The increased bandwidth offered by PCIe 4.0 improves the efficiency of performing workloads. They support TCG Opal 2.0 as standard, and are easily integrated into a host system without any BIOS modifications or additional drivers. The MP3000 products incorporate on-board error detection and correction, and static wear-leveling algorithms to provide reliable operation over the product life cycle.

Engineered with advanced SEU mitigation technology, SMART's MP3000 PCIe NVMe SSDs deliver exceptional reliability and performance, for the most demanding environments.

Essentials
MP3000
eTLC
PCIe Gen4 x4 NVMe 1.4
Performance
Up to 3600MB/s
Up to 2900MB/s
Up to 410K IOPS
Up to 305K IOPS
240GB
480GB
960GB
1920GB
Reliability
240GB: 646TBW
480GB: 1292TBW
960GB: 2585TBW
1920GB: 5170TBW
(JEDEC® Enterprise Workload)
> 2,000,000 hours
1.4
Environmental
1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃
-40℃ to +85℃
40℃, Operation: 90% RH, Storage: 93% RH
Physical
80mm
22mm
3.73mm
SRMP81920FCN2BC31920GBC-Temp
SRMP81920FIN2BC31920GBI-Temp
SRMP8960GFCN2BC3960GBC-Temp
SRMP8960GFIN2BC3960GBI-Temp
SRMP8480GFCN2BC3480GBC-Temp
SRMP8480GFIN2BC3480GBI-Temp
SRMP8240GFCN2BC3240GBC-Temp
SRMP8240GFIN2BC3240GBI-Temp
SRMP81920F1N2AC31920GBC-Temp / SafeDATA (pFail)
SRMP81920F2N2AC31920GBI-Temp / SafeDATA (pFail)
SRMP8960GF1N2AC3960GBC-Temp / SafeDATA (pFail)
SRMP8960GF2N2AC3960GBI-Temp / SafeDATA (pFail)
SRMP8480GF1N2AC3480GBC-Temp / SafeDATA (pFail)
SRMP8480GF2N2AC3480GBI-Temp / SafeDATA (pFail)
SRMP8240GF1N2AC3240GBC-Temp / SafeDATA (pFail)
SRMP8240GF2N2AC3240GBI-Temp / SafeDATA (pFail)
