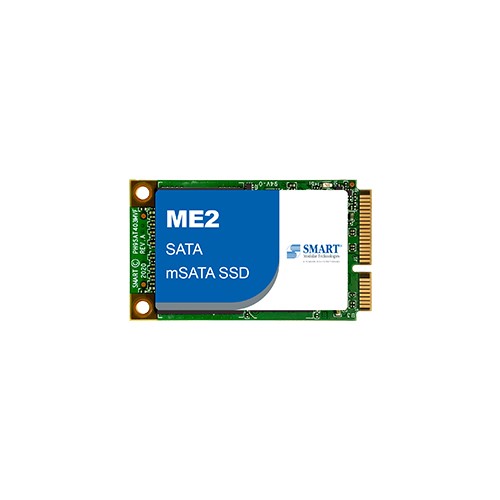

ME2 | SATA | mSATA SSD
mSATA SSDs
SMART’s ME2 mSATA SSDs incorporate the latest generation 3D NAND-technology and SMART Modular’s proprietary NVMSentry™ firmware to deliver high performance SSD products with endurance up to one drive write per day (1 DWPD) for five years. The new ME2 SSDs offer better cost per bit over previous 64-layer and 96-layer NAND generations without sacrificing performance and reliability. Further optimization of the NVMSentry firmware also yields optimization in read and write performance, power consumption, or other features over wide ranges of applications.
Engineered with advanced SEU mitigation technology, SMART's ME2 SATA SSDs deliver exceptional reliability and performance, for the most demanding environments.
- Essentials
- ME2
- eTLC
- SATA 3.0 6Gb/s
- Performance
- Up to 540MB/s
- Up to 460MB/s
- Up to 77K IOPS
- Up to 70K IOPS
- 240GB
480GB
960GB
1920GB
- Reliability
- 240GB: 510TBW
480GB: 1015TBW
960GB: 2275TBW
1920GB: 3755TBW
(JEDEC® Enterprise Workload) - > 2,000,000 hours
- 1
- Environmental
- 1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
- 20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
- C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃ - -40℃ to +85℃
- 40℃, Operation: 90% RH, Storage: 93% RH
- Physical
- 50.8mm
- 29.85mm
- 3.95mm
| SRMST1920FCM2AC4 | 1920GB | C-Temp |
| SRMST1920FIM2AC4 | 1920GB | I-Temp |
| SRMST960GFCM2AC4 | 960GB | C-Temp |
| SRMST960GFIM2AC4 | 960GB | I-Temp |
| SRMST480GFCM2AC4 | 480GB | C-Temp |
| SRMST480GFIM2AC4 | 480GB | I-Temp |
| SRMST240GFCM2AC4 | 240GB | C-Temp |
| SRMST240GFIM2AC4 | 240GB | I-Temp |
| SRMST1920FCM2BC4 | 1920GB | C-Temp / SEU Mitigation |
| SRMST1920FIM2BC4 | 1920GB | I-Temp / SEU Mitigation |
| SRMST960GFCM2BC4 | 960GB | C-Temp / SEU Mitigation |
| SRMST960GFIM2BC4 | 960GB | I-Temp / SEU Mitigation |
| SRMST480GFCM2BC4 | 480GB | C-Temp / SEU Mitigation |
| SRMST480GFIM2BC4 | 480GB | I-Temp / SEU Mitigation |
| SRMST240GFCM2BC4 | 240GB | C-Temp / SEU Mitigation |
| SRMST240GFIM2BC4 | 240GB | I-Temp / SEU Mitigation |
