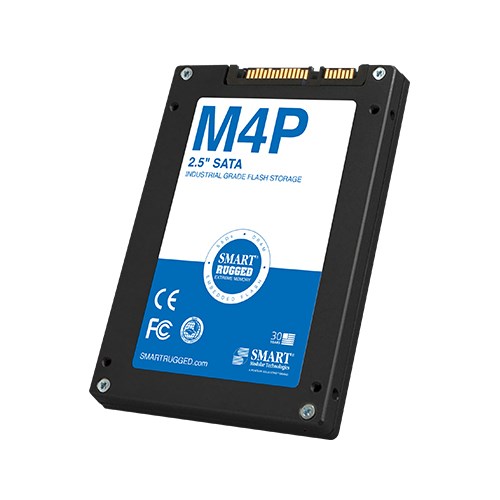

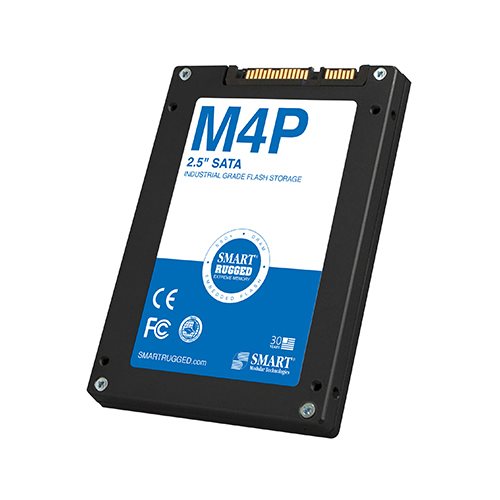

M4P 2.5" SATA SSD
M Series
SMART's RUGGED SSD M4P products are the ideal solution for ground and air defense, industrial automation, transportation, medical and telecommunication applications, the M4P 2.5" SATA solid state drive (SSD) combines high performance, superior reliability and data security into a single ruggedized design.
The SMART M4P SSD is designed to meet the needs of applications where temperature tolerances are as important as high performance and reliability. A robust set of diagnostic information is provided through SSD-specific S.M.A.R.T attributes which can be used to monitor the health of the drives.
- Essentials
- M4P
- MLC
- SATA 3.0 6Gb/s
- Performance
- Up to 525MB/s
- Up to 500MB/s
- Up to 70K IOPS
- Up to 50K IOPS
- 240GB
480GB
960GB
1920GB
- Reliability
- Up to 2,100 TDW
- > 2,000,000 hours
- Environmental
- 50g half-sine, 11 ms, 3 shocks along each axis, X, Y, Z in each direction
- 16.4 g rms 10-2000 Hz random, 3-axes
- C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃ - -55℃ to +95℃
- 5% to 95% non-condensing
- Physical
- 100mm
- 69.85mm
- 7mm
HRBA2X1920EI001 | 1920GB | I Temp (-40˚C to +85˚C) |
HRBA2X1920EC001 | 1920GB | C Temp (0˚C to +70˚C) |
HRBA2X0960EI001 | 960GB | I Temp (-40˚C to +85˚C) |
HRBA2X0960EC001 | 960GB | C Temp (0˚C to +70˚C) |
HRBA2X0480EI001 | 480GB | I Temp (-40˚C to +85˚C) |
HRBA2X0480EC001 | 480GB | C Temp (0˚C to +70˚C) |
HRBA2X0240EI001 | 240GB | I Temp (-40˚C to +85˚C) |
HRBA2X0240EC001 | 240GB | C Temp (0˚C to +70˚C) |
HRBA2X1920EICC1 | 1920GB | I Temp (-40˚C to +85˚C) / Coating |
HRBA2X1920ECCC1 | 1920GB | C Temp (0˚C to +70˚C) / Coating |
HRBA2X0960EICC1 | 960GB | I Temp (-40˚C to +85˚C) / Coating |
HRBA2X0960ECCC1 | 960GB | C Temp (0˚C to +70˚C) / Coating |
HRBA2X0480EICC1 | 480GB | I Temp (-40˚C to +85˚C) / Coating |
HRBA2X0480ECCC1 | 480GB | C Temp (0˚C to +70˚C) / Coating |
HRBA2X0240EICC1 | 240GB | I Temp (-40˚C to +85˚C) / Coating |
HRBA2X0240ECCC1 | 240GB | C Temp (0˚C to +70˚C) / Coating |
