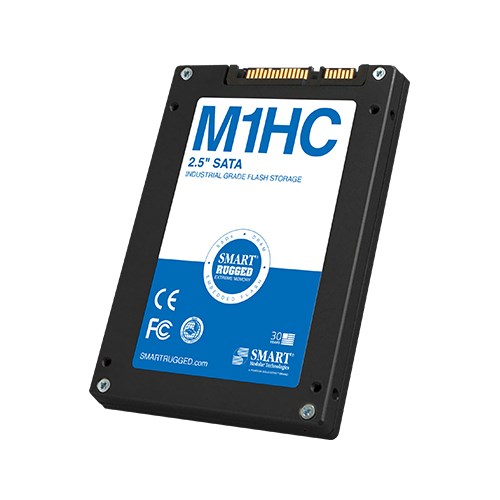

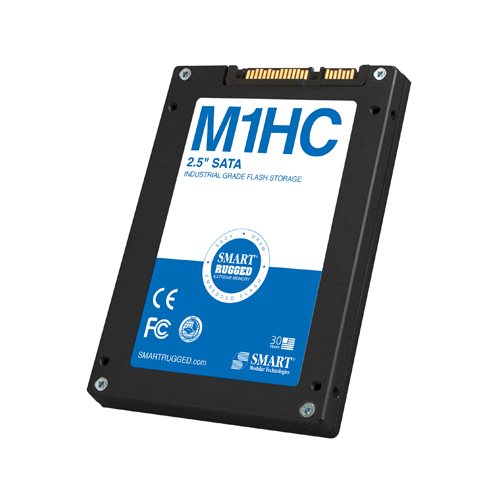

M1HC 2.5" SATA SSD
M Series
SMART's RUGGED SSD M1HC products are ideal for industrial, mission critical military applications, data recording, surveillance and telemetry, M1HC 2.5" SATA solid state drives (SSDs) are among the most data-protected and secure SSDs available. Their ruggedized design is built to withstand 1000g, 0.5 ms of operating shock and has been developed to operate at over 30,000m of altitude, or 100,000 ft.
Engineers designing for high-capacity, highly secure, military applications will want to consider M1HC for their projects. A robust set of diagnostic tools is provided through SSD-specific S.M.A.R.T attributes which can be used to monitor the health of the drive.
- Essentials
- M1HC
- MLC
- SATA 3.0 6Gb/s
- Performance
- Up to 520MB/s
- Up to 500MB/s
- Up to 60K IOPS
- Up to 55K IOPS
- 1TB
2TB
4TB
8TB
- Reliability
- Up to 250 TDW
- > 1,500,000 hours
- Environmental
- 1000g half-sine, 0.5 ms
- 16.3 g rms 10-2000 Hz random, 3-axes
- I-temp: -40℃ to +85℃
- -55℃ to +95℃
- 5% to 95% non-condensing
- Physical
- 100mm
- 69.85mm
- 7mm
9mm
| HR8A2P008TDI001 | 8TB | I Temp (-40˚C to +85˚C) / Secure TCG OPAL |
| HR8A2P004TDI001 | 4TB | I Temp (-40˚C to +85˚C) / Secure TCG OPAL |
| HR8A2P002TDI001 | 2TB | I Temp (-40˚C to +85˚C) / Secure TCG OPAL |
| HR8A2P001TDI001 | 1TB | I Temp (-40˚C to +85˚C) / Secure TCG OPAL |
| HR8A2P008TDICC1 | 8TB | I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating |
| HR8A2P004TDICC1 | 4TB | I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating |
| HR8A2P002TDICC1 | 2TB | I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating |
| HR8A2P001TDICC1 | 1TB | I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating |
| Choosing an SSD for Reliability_Technical Brief | 11/05/2024 |
| SMART M1HC 2.5" SATA RUGGED SSD_Product Brief | 10/17/2024 |
| SMART RUGGED SSDs Product Comparison Chart | 10/30/2024 |
