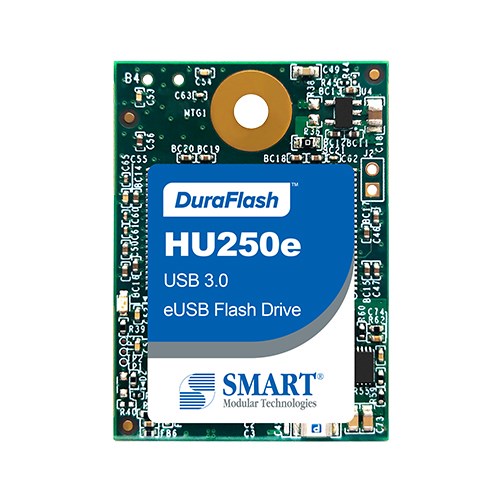

HU250e | USB 3.0 | eUSB
eUSB
SMART’s DuraFlash HU250e USB 3.0 eUSB Flash Drive is designed as the main boot and storage device in embedded systems. The eUSB’s small form factor, lower power consumption, and fast access times, offer distinct technical advantages over more traditional mass storage devices.
Utilizing the USB interface, eUSB products are easily integrated into host systems without any special BIOS modifications or additional device drivers. SMART's HU250e USB 3.0 eUSB products provide reliability by incorporating onboard error detection and correction. Static and dynamic Wear-Leveling algorithms also help to produce reliable operation over product life cycles.
- Essentials
- HU250e
- SLC
- USB 3.0
- Performance
- Up to 150MB/s
- Up to 90MB/s
- 8GB
16GB
32GB
- Reliability
- 8GB: 60 TBW
16GB: 120 TBW
32GB: 280 TBW
(JEDEC® Enterprise Workload) - >4,000,000 hours
- Environmental
- 200 g, 2 msec, 1 shock along each axis, X, Y, and Z
- 1.04g rms, 2 Hz to 200 Hz, 10 minutes each 3 axes
- I-temp: -40℃ to +85℃
- -40℃ to +85℃
- 40℃, Operation: 90% RH, Storage: 93% RH
- Physical
- 36.9mm
- 26.6mm
- M: Pin pitch 2.00mm, H: 3.68mm
| SHU35MBGHAIEI01 | 32GB | I-temp (-40℃ to 85℃) / 5V / Pin 1 / M Connector |
| SHU33MBGHAIEI01 | 32GB | I-temp (-40℃ to 85℃) / 3.3V / Pin 9 / M Connector |
| SHU35MAGHAIDI01 | 16GB | I-temp (-40℃ to 85℃) / 5V / Pin 1 / M Connector |
| SHU33MAGHAIDI01 | 16GB | I-temp (-40℃ to 85℃) / 3.3V / Pin 9 / M Connector |
| SHU35M8GHAICI01 | 8GB | I-temp (-40℃ to 85℃) / 5V / Pin 1 / M Connector |
| SHU33M8GHAICI01 | 8GB | I-temp (-40℃ to 85℃) / 3.3V / Pin 9 / M Connector |
