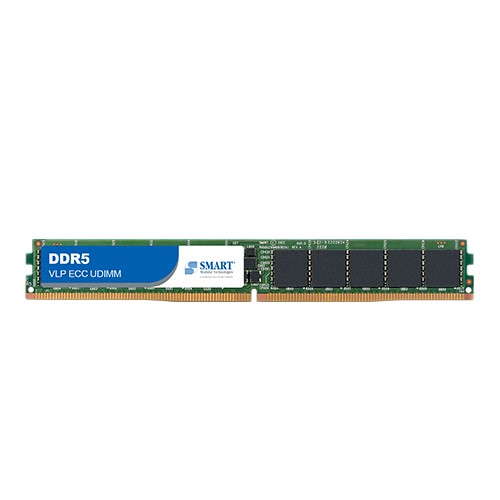

DDR5 VLP ECC UDIMM

DDR5

SMART Modular Technologies’ DDR5 VLP ECC UDIMMs are for 1U blade servers used in telecom, network, compute and storage applications. The key advantages of DDR5 VLP ECC UDIMMs are height, density, power, and performance. ECC memory (Error Correction Code memory) is needed for mission critical applications where each bit of data is important and cannot be lost.

For ruggedized and harsh operating conditions, SMART offers industrial grade temperature operation (-40°C to +85°C), anti-sulfur resistors (ASRs), underfill, conformal coating and retention clips to secure the socket latches in place.

The 16GB and 32GB VLP ECC UDIMMs are the newest product added to SMART’s wide portfolio of blade memory modules that target all types of very dense computing, storage, networking and telecom applications.

Essentials
DDR5
VLP ECC UDIMM
C-temp: 0˚C to 70˚C
I-temp: -40˚C to 85˚C
2Gx8
3Gx8
4Gx8
2Gb
4Gb
6Gb
8Gb
x72
1.1V
288-Pin
Performance
16GB
32GB
48GB
64GB
4800MT/s
5600MT/s
PC5-38400
PC5-44800
CL = 40
CL = 46
CL = 52
Environmental
Yes
Physical
18.75mm
SR8G7UD5488SMV64GBC-temp (0˚C to +70˚C)
SR6G7UD5388HMV48GBC-temp (0˚C to +70˚C)
SR6G7UD5385HMV48GBC-temp (0˚C to +70˚C)
SR4G7UD5288HAV32GBC-temp (0˚C to +70˚C)
SR4G7UD5285SBV32GBC-temp (0˚C to +70˚C)
SR4G7UD5288MDV32GBC-temp (0˚C to +70˚C)
SR4G7UD5288SBV32GBC-temp (0˚C to +70˚C)
SRI4G7UD5285SBV32GBI-temp (-40˚C to +85˚C)
SR2G7UD5288SBV16GBC-temp (0˚C to +70˚C)
SR2G7UD5285SBV16GBC-temp (0˚C to +70˚C)
SRI2G7UD5285SBV16GBI-temp (-40˚C to +85˚C)
