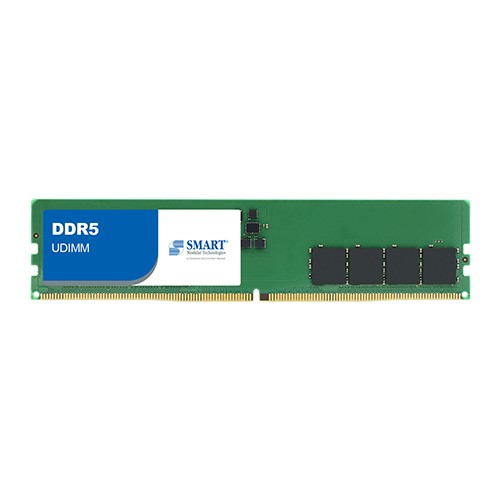

DDR5 UDIMM

DDR5

SMART's DDR5 UDIMMs are designed to meet increasing needs for efficient performance in a wide range of applications including cloud computing, and data center processing. The DDR5 memory provides developers with twice the performance (4800 to 6400 MT/s) and improved power efficiency in comparison to DDR4 by using an on-DIMM 12V voltage regulator (PMIC) and 1.1 I/O Voltage.

DDR5 also improves scaling performance without degrading channel efficiency at higher speeds. This increased performance is achieved by doubling the burst length to BL16 and bank-count to 32 from 16. For increased reliability and efficiency, a DDR5 DIMM utilizes two 40-bit fully independent sub-channels on the same module. DDR5 memory modules have a maximum die density of 64Gb and hence are capable of having a much higher DIMM storage capacity.

Essentials
DDR5
UDIMM
I-temp: -40˚C to 85˚C
1Gx16
2Gx8
1Gb
2Gb
4Gb
x64
1.1V
288-Pin
Performance
8GB
16GB
32GB
5600MT/s
PC5-44800
CL = 46
Environmental
Yes
Physical
31.25mm
SRI4G6UD5288-SP32GBI-temp (-40℃ to 85℃)
SRI2G6UD5288-SP16GBI-temp (-40℃ to 85℃)
SRI1G6UD5168-SP8GBI-temp (-40℃ to 85℃)
