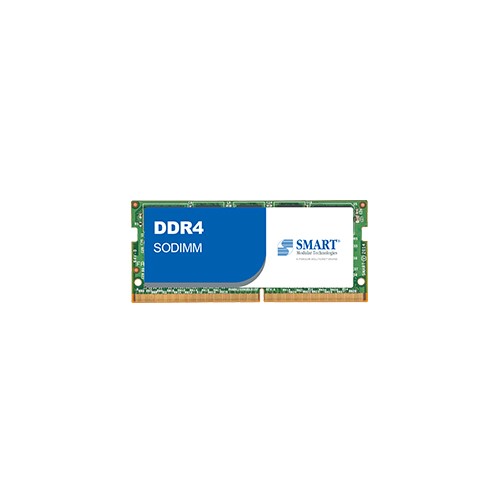

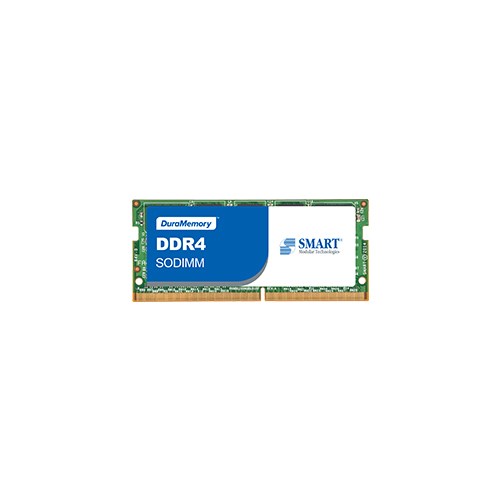

DDR4 SODIMM
DDR4
SMART's SODIMM, or small outline dual in-line memory modules provide a smaller alternative than standard DIMM, roughly half the size of regular DIMM module. SODIMMs are used in systems with limited space, such as industrial control, embedded and rugged computing applications, and networking hardware, such as routers. SODIMMs are commonly used in harsh operating environments.
SMART's Zefr is a screening process performed on OEM original memory modules or SMART Modular built memory modules to deliver ultra-high reliability for demanding workloads. Learn more about Zefr: https://www.smartm.com/technology/Zefr
- Essentials
- DDR4
- SODIMM
- C-temp: 0˚C to 70˚C
I-temp: -40˚C to 85˚C - 256Mx16
512Mx8
512Mx16
1Gx8
2Gx8 - 256Mb
512Mb
1Gb
2Gb
4Gb - x64
x72 - 1.2V
- 260-Pin
- Performance
- 4GB
8GB
16GB
32GB - 2666MT/s
3200MT/s - PC4-21300
PC4-25600 - CL = 19
CL = 22
- Environmental
- Yes
- Physical
- 30.00mm
| ST4096SO420825MF | 32GB | C-temp (0˚C to +70˚C) |
| ST4096SO420825HD | 32GB | C-temp (0˚C to +70˚C) |
| STI4096SO420825-HD | 32GB | I-temp (-40℃ to +85℃) |
| SRI4096SO420825-SC | 32GB | I-temp (-40℃ to +85℃) |
| STI4096SO420825HD | 32GB | I-temp (-40℃ to +85℃) |
| ST2046SO410825SG | 16GB | C-temp (0˚C to +70˚C) |
| ST2046SO410825MR | 16GB | C-temp (0˚C to +70˚C) |
| STI2046SO410825SG | 16GB | I-temp (-40℃ to +85℃) |
| STI2046SO410825-SE | 16GB | I-temp (-40℃ to +85℃) |
| STI2046SO410893-SE | 16GB | I-temp (-40℃ to +85℃) |
| STI2046SO410825MR | 16GB | I-temp (-40℃ to +85℃) |
| ST1026SO451825SG | 8GB | C-temp (0˚C to +70˚C) |
| ST1026SO410825SG | 8GB | C-temp (0˚C to +70˚C) |
| ST1026SO410825MR | 8GB | C-temp (0˚C to +70˚C) |
| STI1026SO410825SG | 8GB | I-temp (-40℃ to +85℃) |
| STI1026SO410825MR | 8GB | I-temp (-40℃ to +85℃) |
| STI1026SO410893-SE | 8GB | I-temp (-40℃ to +85℃) |
| STI1026SO410825-SE | 8GB | I-temp (-40℃ to +85℃) |
| ST5126SO451625MR | 4GB | C-temp (0˚C to +70˚C) |
| ST5126SO451625SG | 4GB | C-temp (0˚C to +70˚C) |
| SRI5126SO451625-SG | 4GB | I-temp (-40℃ to +85℃) |
| STI5126SO451893SG | 4GB | I-temp (-40℃ to +85℃) |
| ST2566SO421693SG | 2GB | C-temp (0˚C to +70˚C) |
| STZ5126SO451893SG | 4GB | C-temp (0˚C to +70˚C) / Zefr |
