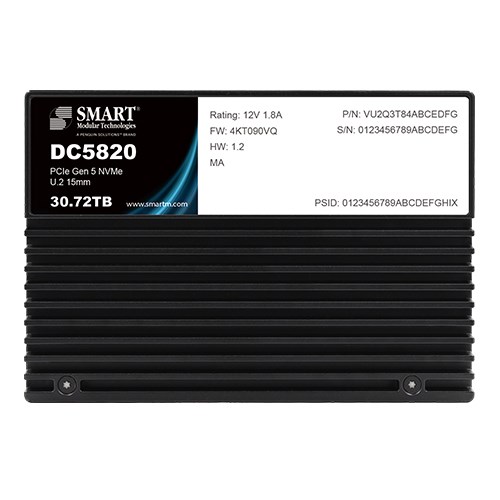

DC5820 | PCIe NVMe | U.2 SSD

DC5820

SMART’s DC5820 PCIe Gen5 NVMe Data Center SSDs are designed to meet the increasing demands placed on storage systems in Hyperscaler, Hyper-converged, Enterprise, and Edge data centers.

The DC5820 Data Center SSD Family delivers industry-leading KIOPs/Watt performance with superior Quality of Service (QoS) across mixed application workloads.

At the heart of the DC5820 Data Center SSDs is an innovative controller and firmware architecture that delivers ultra-low and consistent I/O latency with power consumption levels that virtually eliminate thermal throttling.

SMART_Modular_DC5820_PCIe_NVMe_EDSFF_E1S_Data_Center_SSD
DC5820 | PCIe NVMe | EDSFF E1.S SSD
SMART_Modular_DC5820E_PCIe_NVMe_EDSFF_E1S_Data_Center_SSD
DC5820E | PCIe NVMe | U.2 SSD
SMART_Modular_DC5820E_PCIe_NVMe_EDSFF_E1S_Data_Center_SSD
DC5820E | PCIe NVMe | EDSFF E1.S SSD
SafeDATA™
Develop Open Solutions That Shape The Future
TCG Opal 2.0
Accelerated AI/ML Workloads
Data Center
HPC
Storage
Essentials
DC5820
eTLC
PCIe Gen5 x4 NVMe 2.0
Performance
Up to 14000MB/s
Up to 10000MB/s
Up to 2700K IOPS
Up to 505K IOPS
3840GB
7680GB
15360GB
30720GB
Reliability
3840GB: 7008 TBW
7680GB: 14016 TBW
15360GB: 28032 TBW
30720GB: 56064 TBW
(JEDEC® Enterprise Workload)
> 2,000,000 hours
1
Environmental
1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
20G 80-2000Hz, 1.5mm 20-80Hz, 3 axis
C-temp: 0℃ to +70℃
-40℃ to +85℃
40℃, Operation: 90% RH, Storage: 93% RH
Physical
100.45mm
69.85mm
14.8mm
SVU2Q30T8M1M1A4130720GBC-temp (0˚C to +70˚C)
SVU2Q15T4M1M1A4115360GBC-temp (0˚C to +70˚C)
SVU2Q7T68M1M1A417680GBC-temp (0˚C to +70˚C)
SVU2Q3T84M1M1A413840GBC-temp (0˚C to +70˚C)
