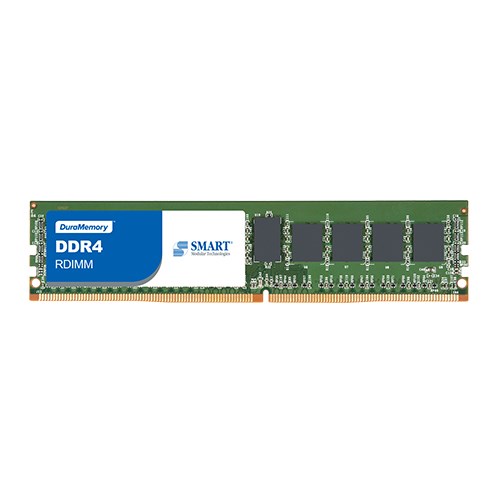

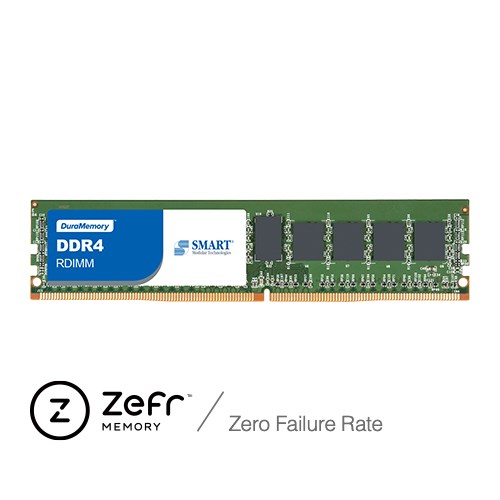

DDR4 RDIMM
DDR4
SMART's RDIMMs use a hardware register that buffers the control signals to the modules. RDIMMs handle heavier electrical loads placed on high-speed, high-density memory modules better than the unbuffered DIMMs. When three or more DIMMs are used per memory channel, RDIMMs typically provide greater performance. SMART offers a wide variety of configurations, densities, and speeds to support diverse application requirements. (Enterprise grade option)
- Essentials
- DDR4
- RDIMM
- C-temp: 0˚C to 70˚C
I-temp: -40˚C to 85˚C - 512Mx8
1Gx8
2Gx4
2Gx8
4Gx4 - 1Gb
2Gb
4Gb
8Gb - x72
- 1.2V
- 288-Pin
- Performance
- 8GB
16GB
32GB
64GB - 3200MT/s
- PC4-25600
- CL = 22
- Environmental
- Yes
- Physical
- 31.25mm
| SRI8197RD440425-SC | 64GB | I Temp (-40˚C to +85˚C) |
| ST4097RD420825SC | 32GB | C-temp (0˚C to +70˚C) |
| STI4097RD420825MF | 32GB | I Temp (-40˚C to +85˚C) |
| STT4097RD420825MF | 32GB | I Temp (-40˚C to +85˚C) |
| SRI4097RD420825-SC | 32GB | I Temp (-40˚C to +85˚C) |
| SRI4097RD420425-SE | 32GB | I Temp (-40˚C to +85˚C) |
| ST2047RD420825MF | 16GB | C-temp (0˚C to +70˚C) |
| ST2047RD410825SG | 16GB | C-temp (0˚C to +70˚C) |
| ST2047RD420825HD | 16GB | C-temp (0˚C to +70˚C) |
| SRI2047RD420425-SE | 16GB | I Temp (-40˚C to +85˚C) |
| STI2047RD410825SG | 16GB | I Temp (-40˚C to +85˚C) |
| SRI2047RD410825-SE | 16GB | I Temp (-40˚C to +85˚C) |
| ST1027RD410825HE | 8GB | C-temp (0˚C to +70˚C) |
| ST1027RD451825SG | 8GB | C-temp (0˚C to +70˚C) |
| ST1027RD410825SG | 8GB | C-temp (0˚C to +70˚C) |
| STI1027RD451825SG | 8GB | I-temp (-40℃ to 85℃) |
