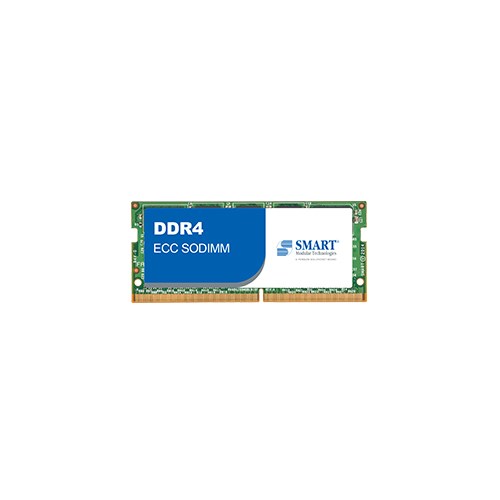

DDR4 ECC SODIMM
DDR4
SMART Modular世邁科技ECC SODIMM記憶體模組有別於一般標準模組，提供較小尺寸，大小約為一般DIMM的一半。SODIMM通常使用於有空間限制的系統中，例如工業控制、嵌入式和運算系統、路由器等網通硬體等，也經常使用於嚴苛的操作環境。ECC SODIMM模組內建錯誤校正編碼，可以偵測並修正常見的內部資料毀損問題。
SMART Modular世邁科技獨家Zefr是一套專業嚴謹的出廠前記憶體測試篩選流程，針對OEM出廠及世邁科技生產的記憶體模組，為高負載量的應用挑選出極度可靠的記憶體模組。更多資訊：https://www.smartm.com/ch/technology/Zefr
- 標準
- DDR4
- ECC SODIMM
- C-temp: 0˚C to 70˚C
I-temp: -40˚C to 85˚C - 512Mx8
1Gx8
2Gx8 - 512Mb
1Gb
2Gb
4Gb - x72
- 1.2V
- 260-Pin
- 效能
- 4GB
8GB
16GB
32GB - 2133MT/s
2666MT/s
2933MT/s
3200MT/s - PC4-23400
PC4-25600
PC5-44800 - CL = 15
CL = 19
CL = 21
CL = 22
- 環境
- Yes
- 尺寸
- 30.00mm
| ST4097SO420825MF | 32GB | C-temp (0˚C to +70˚C) |
| ST4097SO420825SC | 32GB | C-temp (0˚C to +70˚C) |
| ST4097SO420825HD | 32GB | C-temp (0˚C to +70˚C) |
| STI4097SO420825SC | 32GB | I-temp (-40℃ to 85℃) |
| STI4097SO420825MF | 32GB | I-temp (-40℃ to 85℃) |
| SRI4097SO420825-SC | 32GB | I-temp (-40℃ to 85℃) |
| ST2047SO420825HD | 16GB | C-temp (0˚C to +70˚C) |
| ST2047SO410825HE | 16GB | C-temp (0˚C to +70˚C) |
| ST2047SO420825SC | 16GB | C-temp (0˚C to +70˚C) |
| ST2047SO410825SG | 16GB | C-temp (0˚C to +70˚C) |
| STI2047SO410814MR | 16GB | I-temp (-40℃ to 85℃) |
| STI2047SO410825SG | 16GB | I-temp (-40℃ to 85℃) |
| SRI2047SO420825-SC | 16GB | I-temp (-40℃ to 85℃) |
| STI2047SO420825SC | 16GB | I-temp (-40℃ to 85℃) |
| ST1027SO410893SG | 8GB | C-temp (0˚C to +70˚C) |
| ST1027SO451825SG | 8GB | C-temp (0˚C to +70˚C) |
| ST1027SO451825NE | 8GB | C-temp (0˚C to +70˚C) |
| ST1027SO410825HE | 8GB | C-temp (0˚C to +70˚C) |
| ST1027SO410825SG | 8GB | C-temp (0˚C to +70˚C) |
| STI1027SO410825SG | 8GB | I-temp (-40℃ to 85℃) |
| ST5127SO451825NE | 4GB | C-temp (0˚C to +70˚C) |
| ST5127SO451893SG | 4GB | C-temp (0˚C to +70˚C) |
| ST5127SO451851SG | 4GB | C-temp (0˚C to +70˚C) |
| STI5127SO451851SG | 4GB | I-temp (-40℃ to 85℃) |
| STI5127SO451893SG | 4GB | I-temp (-40℃ to 85℃) |
| STT5127SO451893NE | 4GB | I-temp (-40℃ to 85℃) |
| STB4097SO420825SC | 32GB | C-temp (0˚C to +70˚C) / Zefr |
| SRZ4097SO420825-SC | 32GB | C-temp (0˚C to +70˚C) / Zefr |
| STZ2047SO420825SC | 16GB | C-temp (0˚C to +70˚C) / Zefr |
